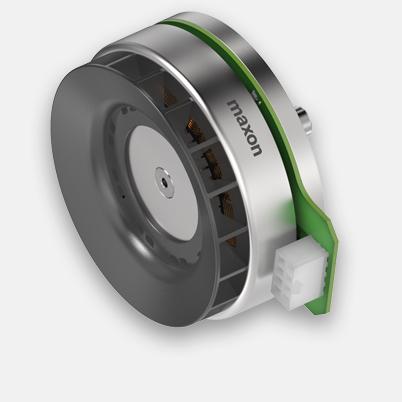

EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors | ventilated

Part number 607950

EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 CHF 234.50
5-19 CHF 196.70
20-49 CHF 170.40
from 50 On request

Specifications

Technical illustrations

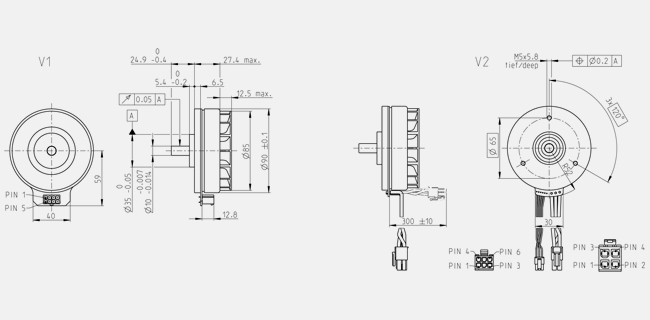

  • Dimension drawing
Values at nominal voltage
Nominal voltage 24 V
No load speed 3210 rpm
No load current 696 mA
Nominal speed 2340 rpm
Nominal torque (max. continuous torque) 961 mNm
Nominal current (max. continuous current) 12 A
Stall torque 5030 mNm
Stall current 113 A
Max. efficiency 85 %
Characteristics
Terminal resistance 0.213 Ω
Terminal inductance 0.232 mH
Torque constant 70.1 mNm/A
Speed constant 136 rpm/V
Speed / torque gradient 0.413 rpm/mNm
Mechanical time constant 13.9 ms
Rotor inertia 3210 gcm²
Thermal data
Thermal resistance housing-ambient 0.675 K/W
Thermal resistance winding-housing 0.923 K/W
Thermal time constant winding 17.3 s
Thermal time constant motor 100 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 5000 rpm
Axial play {0} {1}, at radial load {2} {3} {4}
0.14 mm, at radial load > 58 N
Max. axial load (dynamic) 34 N
Max. force for press fits (static) 440 N
(static, shaft supported) 8000 N
Max. radial load 100 N, 10 mm from flange
Other specifications
Number of pole pairs 11
Number of phases 3
Number of autoclave cycles 0
Product
Weight 638 g

Description

The flat design of the brushless EC flat motors makes them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing—this is reflected by the economical price.

The fan wheel provides active cooling during operation, which permits very high continuous torques.
