NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations
Dimension drawing
Information: Drawings are not to scale.
Values at nominal voltage
Nominal voltage
3.6 V
No load speed
10400 rpm
No load current
158 mA
Nominal speed
8350 rpm
Nominal torque (max. continuous torque)
1.78 mNm
Nominal current (max. continuous current)
0.72 A
Stall torque
9.66 mNm
Stall current
3.09 A
Max. efficiency
59 %
Characteristics
Terminal resistance
1.16 Ω
Terminal inductance
0.0587 mH
Torque constant
3.12 mNm/A
Speed constant
3060 rpm/V
Speed / torque gradient
1140 rpm/mNm
Mechanical time constant
37.8 ms
Rotor inertia
2.07 gcm²
Thermal data
Thermal resistance housing-ambient
21.3 K/W
Thermal resistance winding-housing
10.5 K/W
Thermal time constant winding
10.9 s
Thermal time constant motor
201 s
Ambient temperature
-30...+85 °C
Max. winding temperature
+125 °C
Mechanical data
Bearing type
sleeve bearing
Max. speed
12000 rpm
Axial play
0.05 - 0.15 mm
Radial play
0.012 mm
Max. axial load (dynamic)
1 N
Max. force for press fits (static)
80 N
(static, shaft supported)
480 N
Max. radial load
2.7 N, 5 mm from flange
Other specifications
Number of pole pairs
1
Number of commutator segments
9
Number of autoclave cycles
0
Product
Weight
34 g
Operating Range
Continuous operation range
Short term operation range
Description

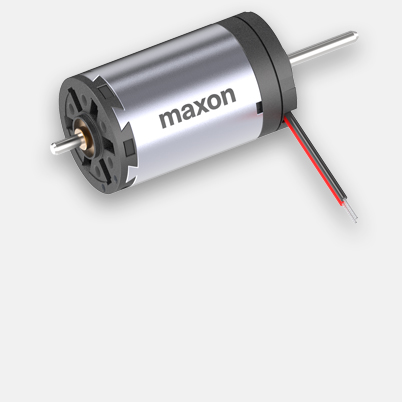

maxon A-max motors are an innovative range of high-quality DC motors, equipped withpowerful AlNiCo permanent magnets. The “heart” of our motors is the ironless maxon winding,that has been tested millions of times over. This is the latest technology for compact,powerful and low-inertia drives.
