Beyond combinations. Configure your drive individually.

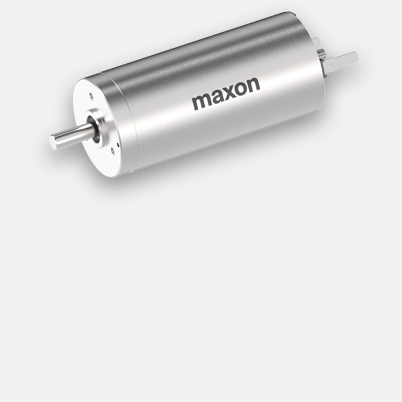

DCX 26 L Ø 26mm, graphite brushes, sintered bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | CHF 239.80* |
| 5-19 | CHF 209.20* | |
| 20-49 | CHF 178.50* | |
| from 50 | On request |
Specifications
Technical illustrations

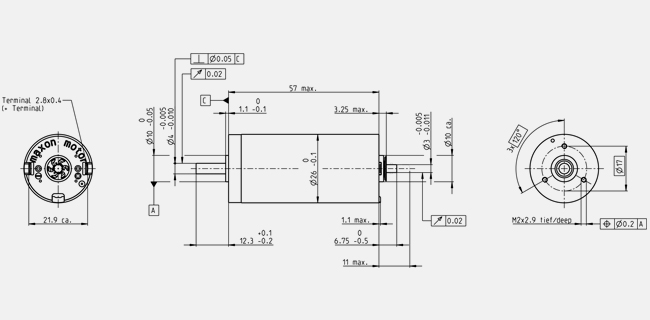

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 36 V |
| No load speed | 11100 rpm |
| No load current | 69 mA |
| Nominal speed | 10200 rpm |
| Nominal torque (max. continuous torque) | 45.4 mNm |
| Nominal current (max. continuous current) | 1.53 A |
| Stall torque | 618 mNm |
| Stall current | 20 A |
| Max. efficiency | 88 % |
| Characteristics | |
| Terminal resistance | 1.8 Ω |
| Terminal inductance | 0.268 mH |
| Torque constant | 31 mNm/A |
| Speed constant | 308 rpm/V |
| Speed / torque gradient | 18 rpm/mNm |
| Mechanical time constant | 3.64 ms |
| Rotor inertia | 19.4 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 10.2 K/W |
| Thermal resistance winding-housing | 3.01 K/W |
| Thermal time constant winding | 21.7 s |
| Thermal time constant motor | 620 s |
| Ambient temperature | -30...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 8600 rpm |
| Axial play | 0 mm, at radial load < 0 N |
| 0.2 mm, at radial load > 0 N | |
| Radial play | 0.02 mm |
| Max. axial load (dynamic) | 0.1 N |
| Max. force for press fits (static) | 80 N |
| (static, shaft supported) | 500 N |
| Max. radial load | 5.5 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 11 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 170 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon DCX motors feature unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, make the DCX motors a highly dynamic drive for almost every application scenario.The DCX 26 L is a powerhouse. Preloaded ball bearings or sintered bearings, graphite or precious metal brushes with CLL – the extensive options make it suitable for a wide range of applications.
